In addition to linking equipment from your Work Order & Asset Management module to your floor plan and linking spaces from your Event Scheduler/Work Order & Asset Management modules, you can also create custom layers! These custom layers can help you visually separate out additional items or attributes about your campus or buildings and visually track items beyond your equipment from your Work Order & Asset Management module. Just like equipment and spaces, once custom layers are added, all users can easily enable or disable those custom layers from appearing on the floor plan.
User Editing Access
- All admins can add and edit floor plans.
- Admins can edit sub-admin and user permissions so they can also add and edit Floor Plans. As a default, all new sub-admins and users will not be granted automatic editing access to Floor Plan.
- Calendar View Only users and portal users in Work Order & Asset Management are designed to have very limited access and thus will not have access to Floor Plan.
Zooming & Navigating Across Your Floor Plan

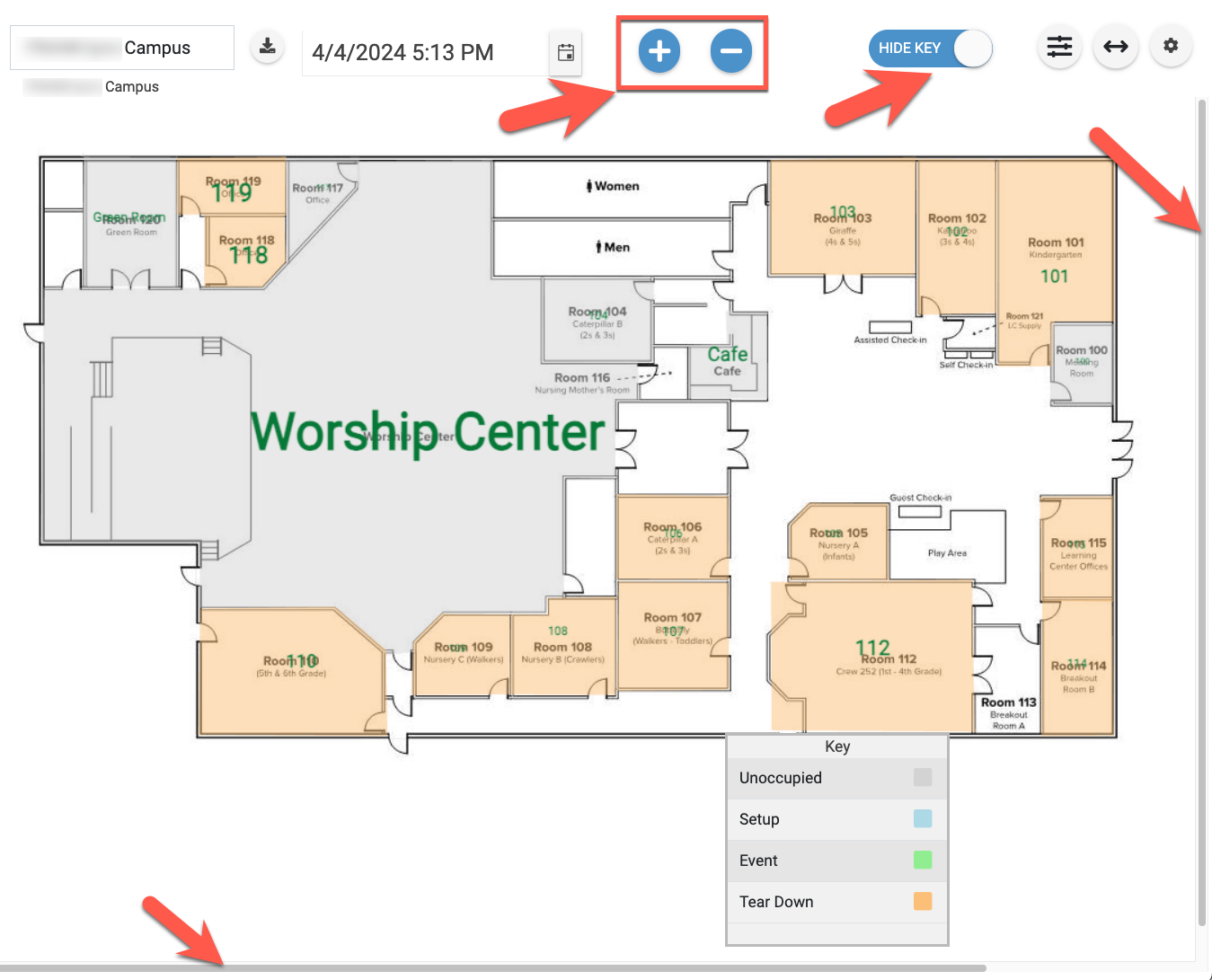

- Users can see more of the Floor Plan by clicking the "plus" and "minus" icons to zoom in and out OR wheel on their mouse.
- Users can move the Floor Plan around by using the vertical and horizontal navigation bars.
- Users can click and drag the Key to any spot on the Floor Plan or toggle "Hide Key".
Creating Customer Layers on Floor Plan

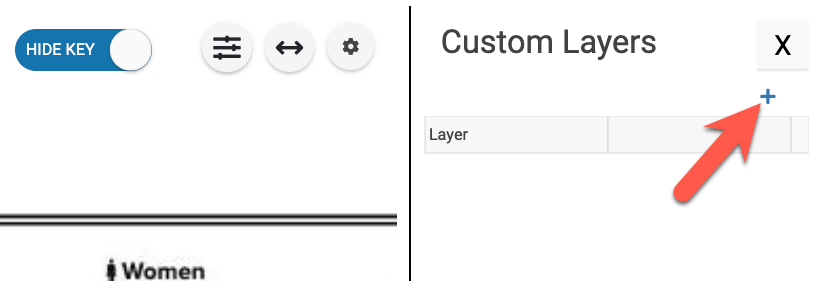

1. Admins can start by clicking the gear icon at the top right and selecting "Edit Custom Layers".

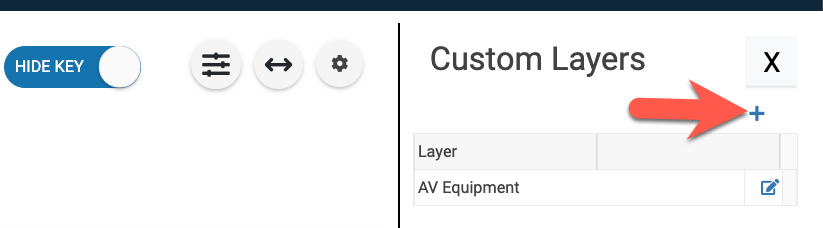

2. Click the plus sign.

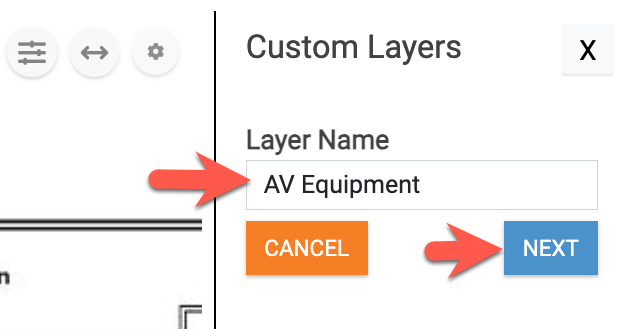

3. Name the layer based on what you plan to include in that layer, which could be one or multiple types of items.
- Different tiers include a different amount of custom layers that can be added.
- Equipment you have in Work Order & Asset Management will be able to be linked without creating a custom layer.
Adding Custom Text & Shapes

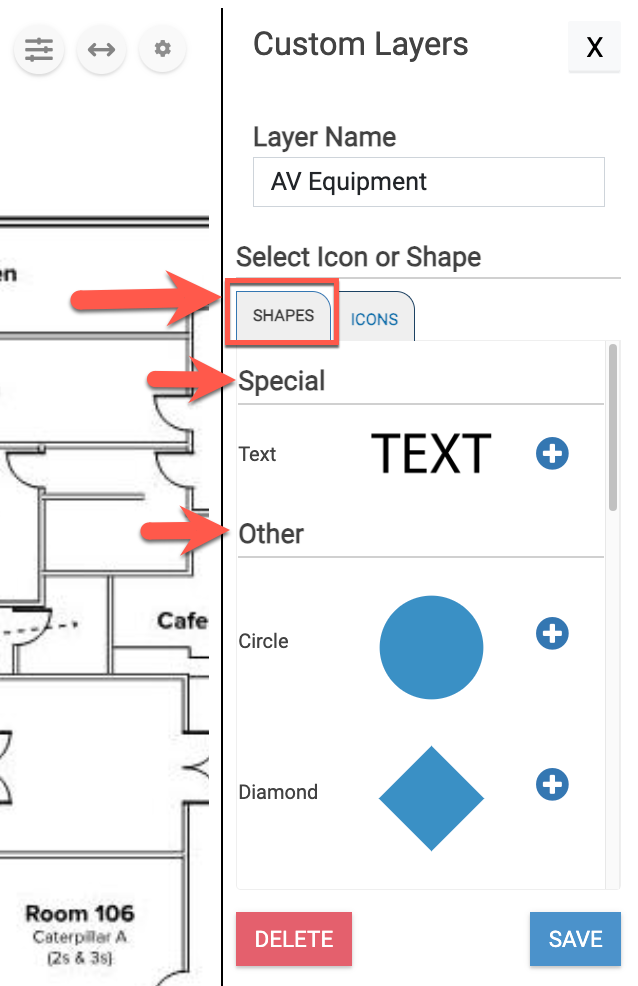

4. On the Shapes tab you can either type in a custom text to add to the floor plan or choose a generic shape.
-
A. Custom Text

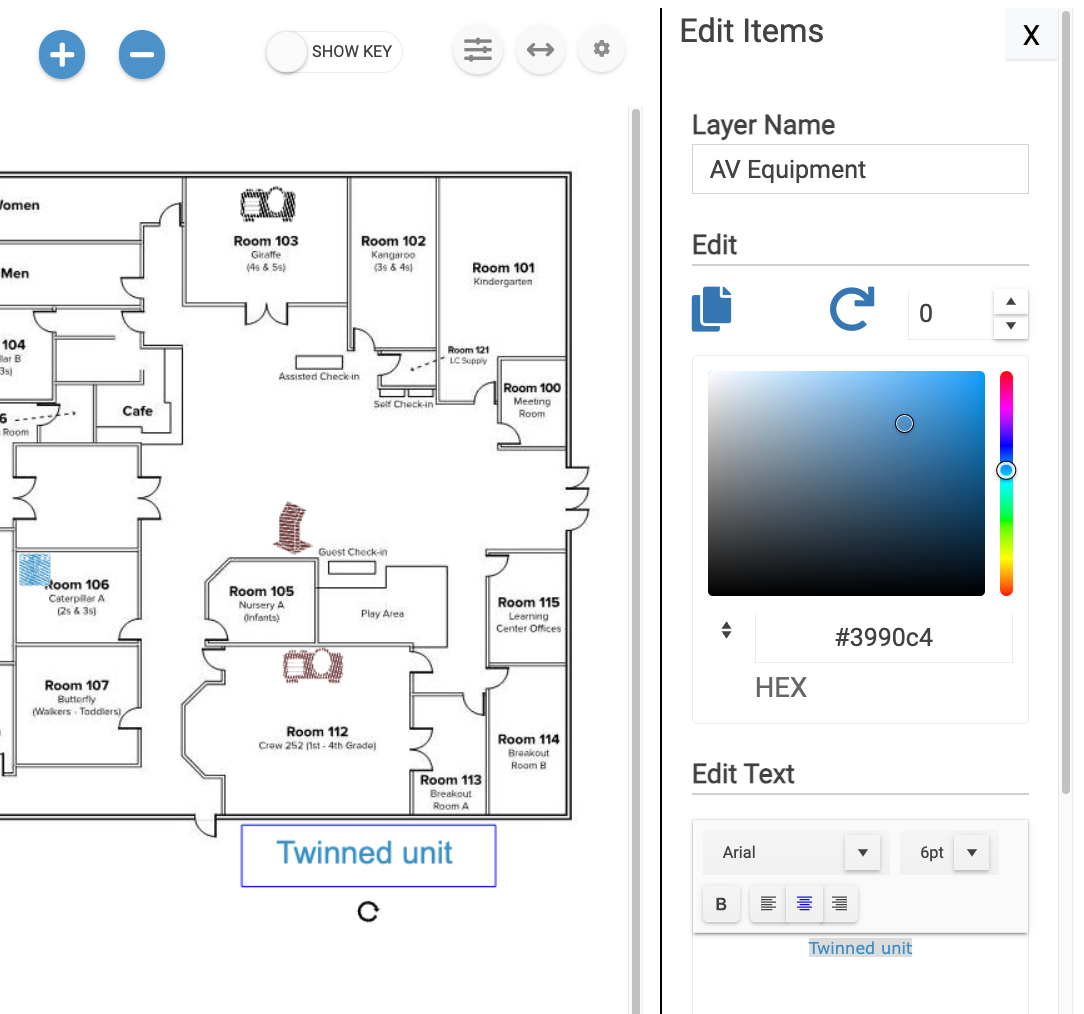

- Once you type in the text that you want to add, then you can click & to drag it to the spot that you want. You can also adjust the font, size, color and more.
-
- Click "Save" before adding or editing the next shape, text, or icon.
-
B. Custom Shape

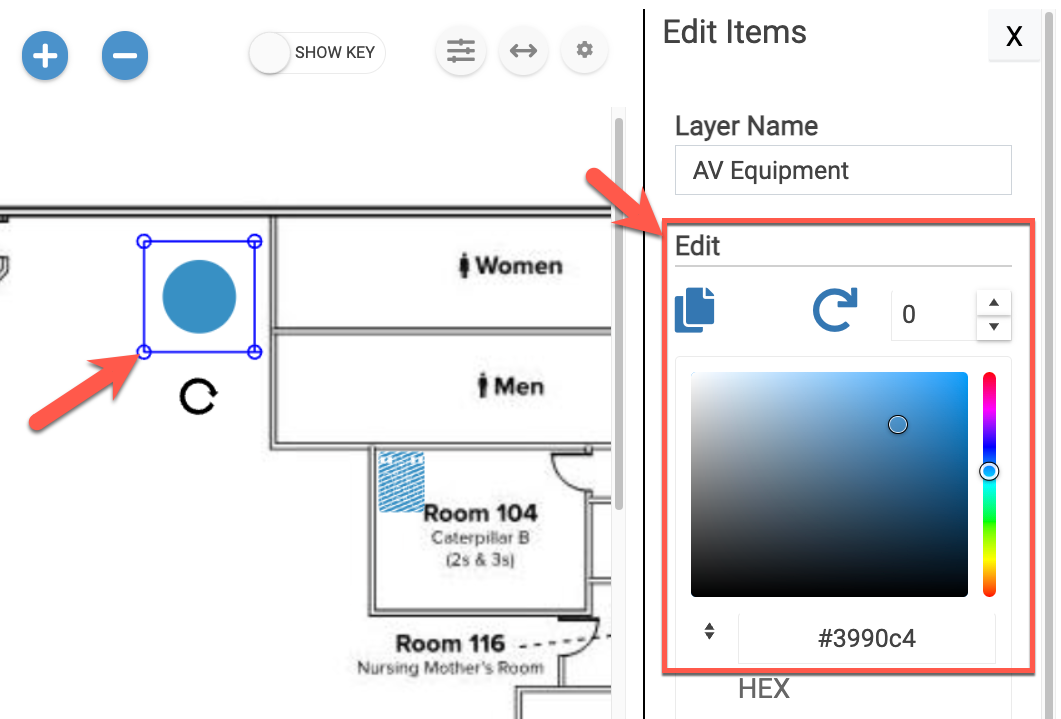

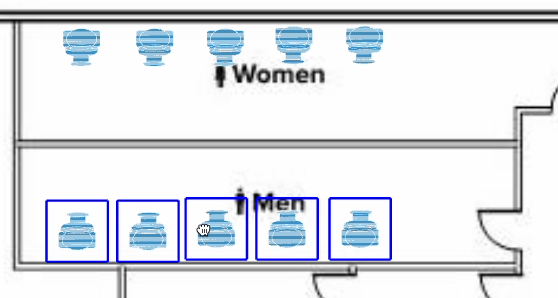

- Once you select the shape that you want, you can click & drag it to the spot that you want, rotate, and resize it by clicking & holding a corner and moving it farther or closer to the center of the shape. You can also adjust the color and copy it to quickly add another one.
-
- Click "Save" before adding or editing the next shape, text, or icon.
Adding Custom Icons

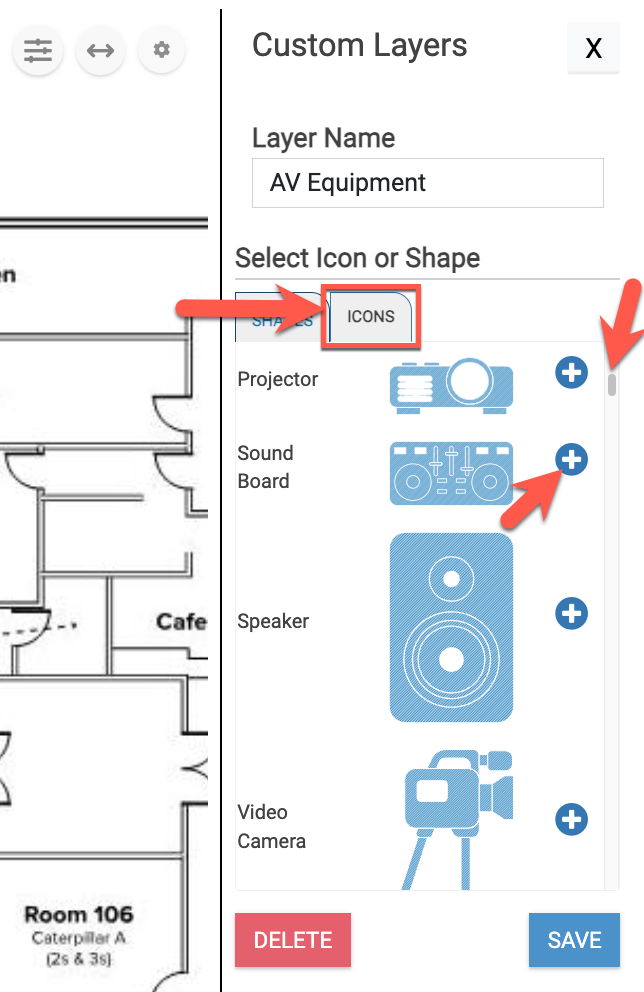

5. On the Icons tab you can scroll through the list of default equipment icons and then click the plus symbol next to one in order to add it to the floor plan.
- Click "Save" before adding or editing the next shape, text, or icon.
Adding & Editing Individual Icons or Shapes

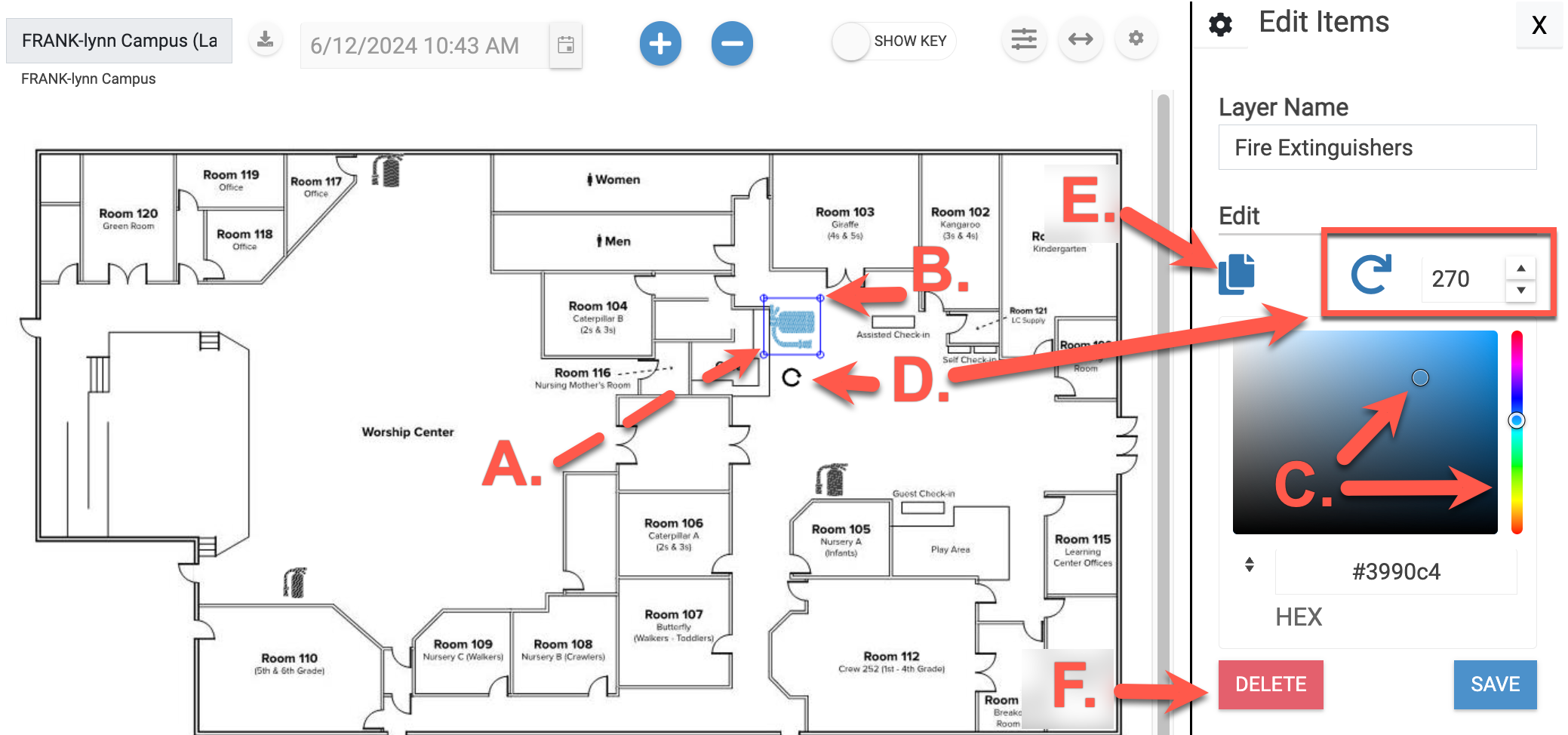

6. Whether you choose to add a custom text, generic shape, or one of the default equipment icons, once it's added to the floor plan you will have the following options:
- A. Clicking & dragging the text, shape or icon to its proper location
- B. Resizing
- C. Changing the color
- D. Rotating
- E. Cloning/copying
- F. Deleting

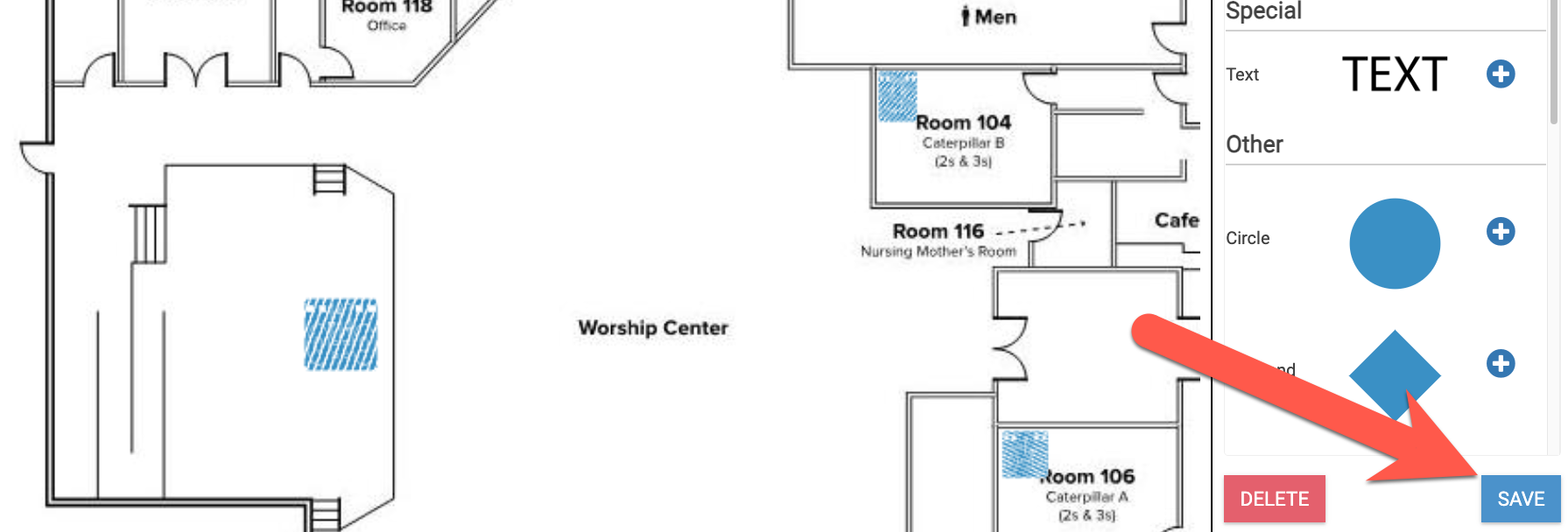

Once you have it in the proper spot, choose a color, and rotate it... click "Save Shape".
Adding & Editing Multiple Icons & Shapes
-
G. Copying & Editing a group of icons
- In order to do this, first add as many of the icons as you want and click "Save" after you are done moving, rotating, and changing the color of that last icon.
-

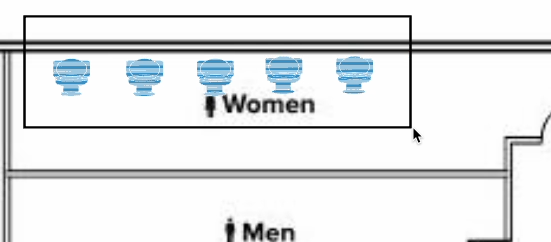

- Next, click and drag your curser to draw a box around all the icons you want to copy/clone as a group.
-

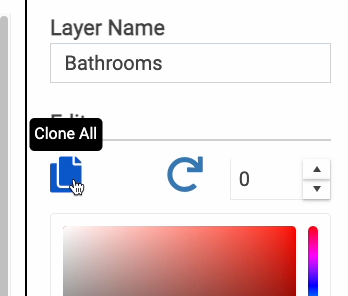

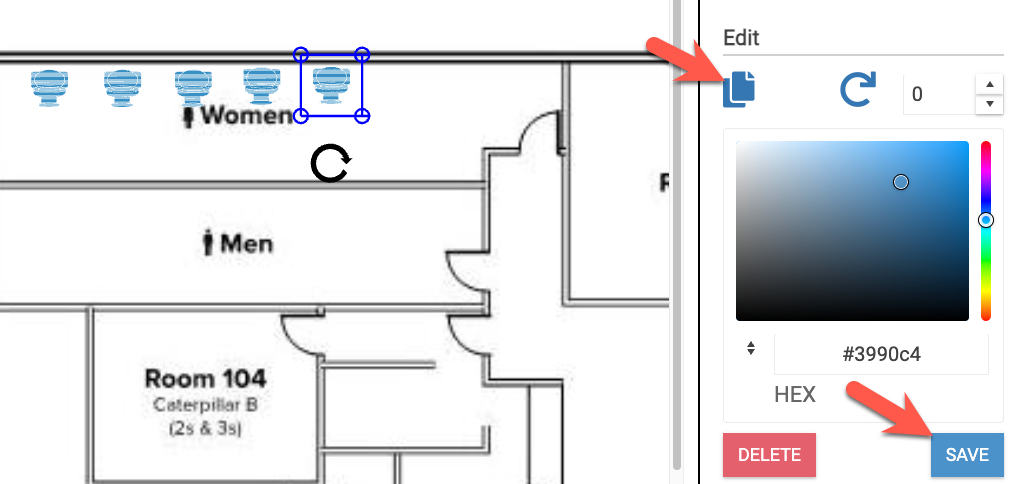

- Then click the copy/clone option in the left side menu to copy all of the chosen icons.
-
- A second set of the icons will appear where you can then drag them to their correct location, rotate them, choose a different color...etc.

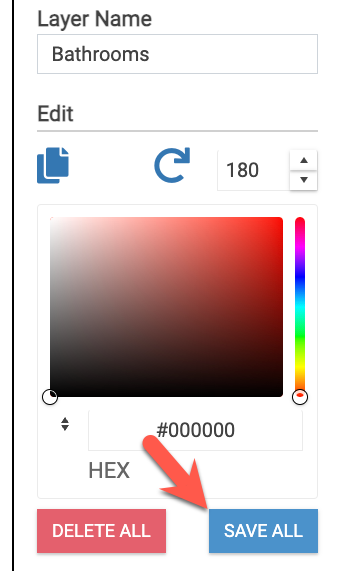

- Remember to click "Save All" after making changes to the selected icons. (Then you can either add more icons, copy/clone more groups of icons, or click "Save" again in order to save the Custome Layer as a whole.)
7. Continue to select the same or different icons for the Custom Layer you are working on until you have added all the custom text, generic shapes, and default equipment icons for that custom layer that you need.
Once you are finished adding and editing all items for that layer click "Save" again in order to save the layer as a whole.
8. Depending on what subscription tier you are on, you can more custom layers.
Making Edits or Additions to the Customer Layer

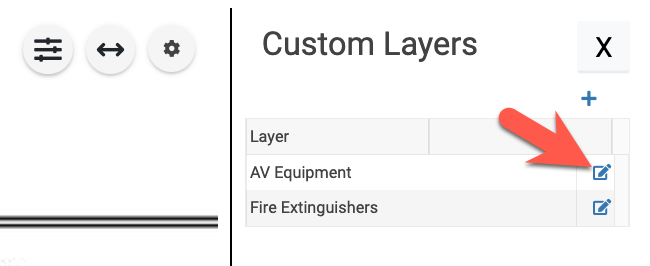

If you later want to add additional icons or text to a custom layer or change the name of a custom layer, just click the edit option next to the layer you want to make changes to.
After you click to edit the custom layer you will also be able to move the custom text, shapes, and icons around as well.

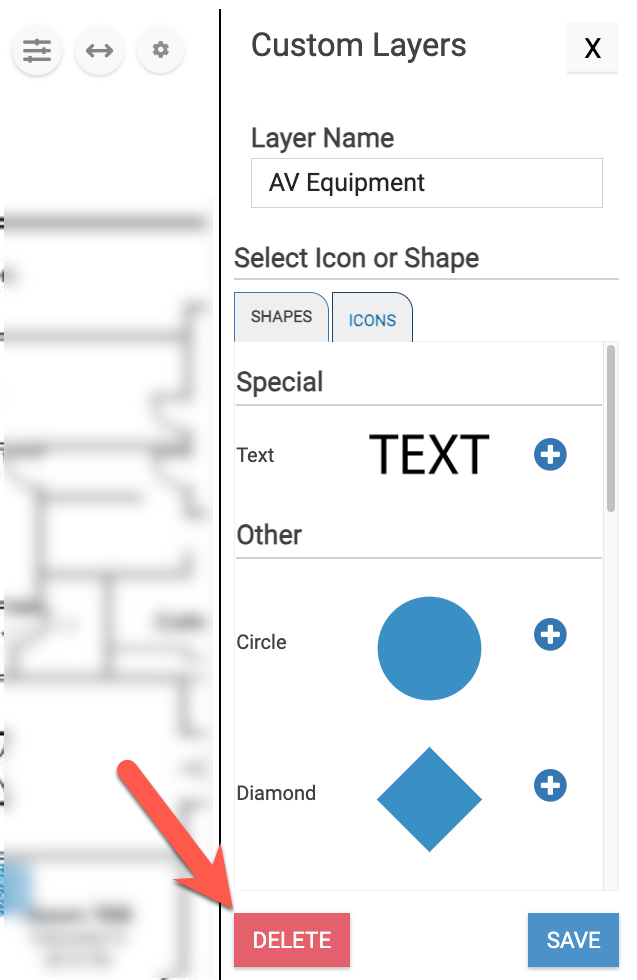

If you want to delete a customer layer, select to edit it and then choose the Delete option at the bottom.
Different eSPACE Subscription Tiers include Different Features
Viewing Your Subscription Details
- Each eSPACE admin with access to Billing can view what subscription tier your organization currently has and everything that is included in their account under Settings > Other > Billing > Manage.
